Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design

Walstone Industry Limited
Contact Now
    Buy cheap Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design from wholesalers

    Buy cheap Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design from wholesalers
    • Buy cheap Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design from wholesalers
    • Buy cheap Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design from wholesalers
    • Buy cheap Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design from wholesalers
    • Buy cheap Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design from wholesalers

    Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design

    Ask Lasest Price
    Model Number : 10R22.5
    Certification : ECE/DOT/GCC/INMETRO/CCC
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design

    The Travel coach Tires 10R22.5, Economical Efficiency, the Urban Buses Tires 10 22.5


    Features


    The tire of 10R22.5 is main configured tire size for the urban buses. The stability and economy is always the main required for the tires which mounted on the buses running on the urban pavement, available size including 17.5-, 19.5- and 22.5-inch rim diameters, the tread widths rang from 205mm to 280mm.


    The application of newly material which increasing the strength of the carcass of this travel coach tire of 10R22.5, make it is possible, to retread after the tread worn off, and increase the service long and economical efficiency.

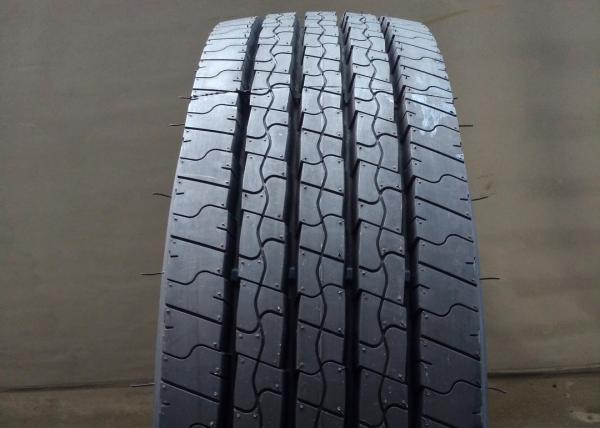

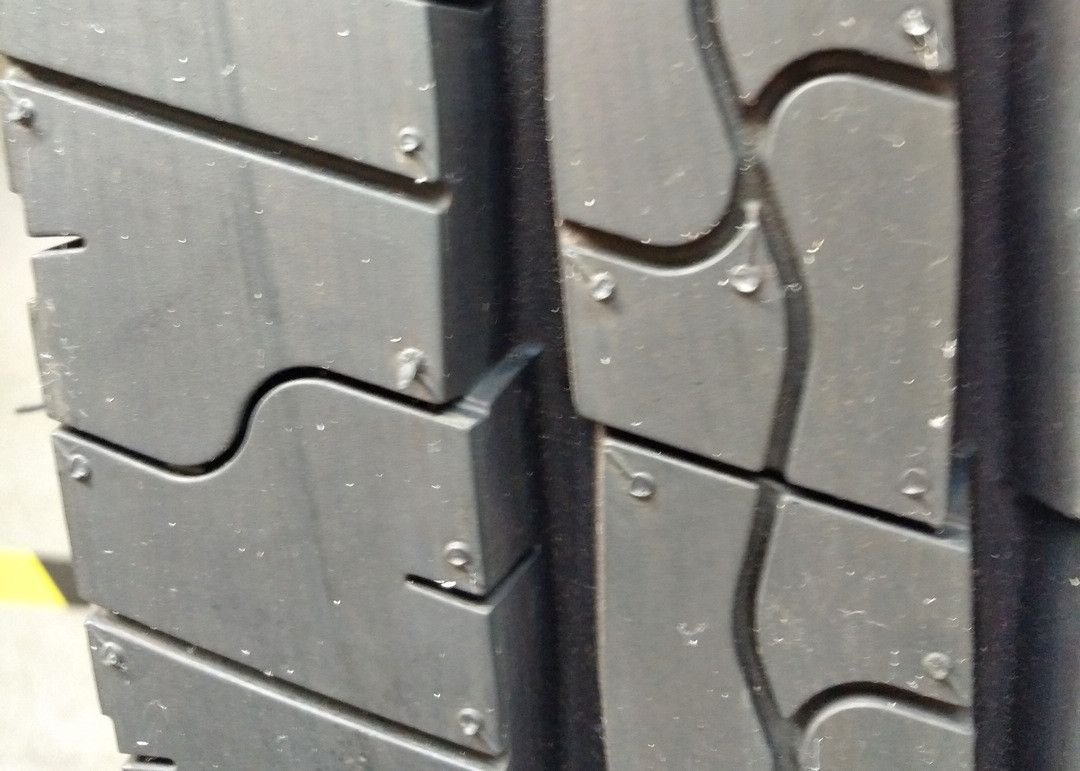

    The closed outboard shoulder and the design with s-sharp sipes on the tread rib of this travel coach tire, optimizes the footprint distribution to increase the abrasion resistance and the performance of against to irregular wear.


    This urban bus tire of 10R22.5 with 4 straight grooves, with providing the low rolling resistance, comfort ride and good water drainage, and reduces the fuel consumption and protecting the environment.


    Specification


    SizePly

    Load

    Index

    Speed

    index

    Standard

    Rim

    Max

    load(Kg)

    New tire inflated

    Dimensions(mm)

    Tube

    Operation

    Norm

    SingleDual

    Section

    Width

    Overall

    Diameter

    9.5R17.514129/127M6.7518501750240842TLETRTO
    9.5R17.518143/141M6.7527252575240842TLETRTO
    8R19.512124/122M6.0016001500203859TLTRA
    8R19.512127/125M6.0017501650203859TLGB
    8R22.514130/128M6.0019001800203935TLETRTO
    9R22.514136/134M6.7522402120229974TLTRA
    10R22.514141/139M7.5257524302541019TLTRA
    10R22.516144/142L7.5280026502541020TLETRTO
    11R22.514144/142M8.25280026502791054TLTRA
    11R22.516146/143M8.25300027252791054TLTRA
    11R22.516148/145M8.25315029002791054TLETRTO

    Speed index


    Speed

    Index

    BCDEFGJKLMNPQR
    Km/h506065708090100110120130140150160170

    Application


    This urban bus tire of 10R22.5 with four straight grooves is one of mature travel coach tires products that being genuine tire parts for many buses model, such as vehicle model of XMQ6901AY which the which is produced by KINGLONG, one of famous coach manufacturer of China.


    During the rushing hours, when the urban buses were filled with people passing through heavy traffic, the vehicle stability and handling are critical. The closed shoulder design of this travel coach tire of 10R22.5 provides the wider footprint which is benefited to keep high traction and withstand lateral force.


    The tasks of the urban buses do not be cancelled by the severe weather conditions such as rain, sleet and snow, and public transporting system provide cheap and convenient vehicles for the people who living in city. The mangers of public transport company rely on the durable and economy tire to keep the public system running during any weather, and low the operating costing.


    Urban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder DesignUrban Buses / Travel Coach Tires 10R22.5 Closed Outboard Shoulder Design
